CATALOG| Manholes

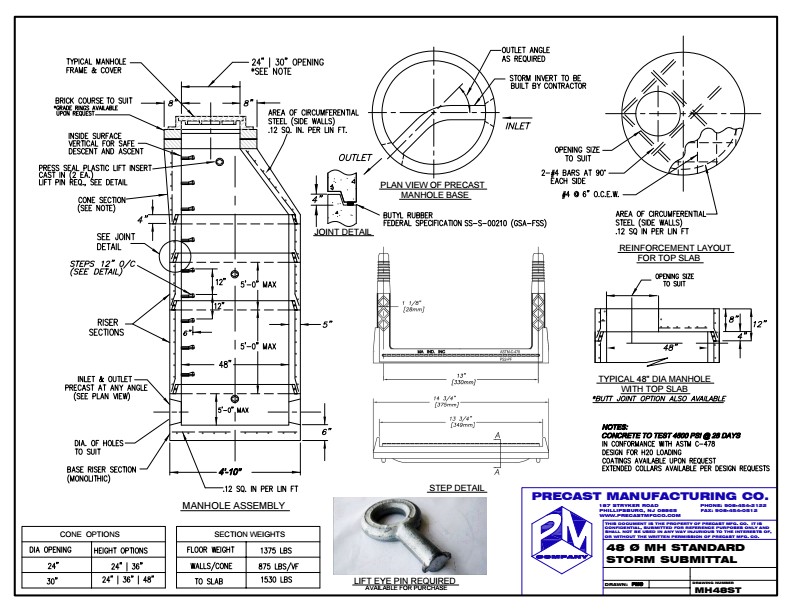

4′- 0″ Dia. Concrete Manhole with Standard Footing – Typical Assembly

4'- 0" Dia. Concrete Manhole with Standard Footing - Typical Assembly

Tap the blue button below to download your file:

4′- 0″ Dia. Concrete Manhole with Standard Footing – Typical Assembly

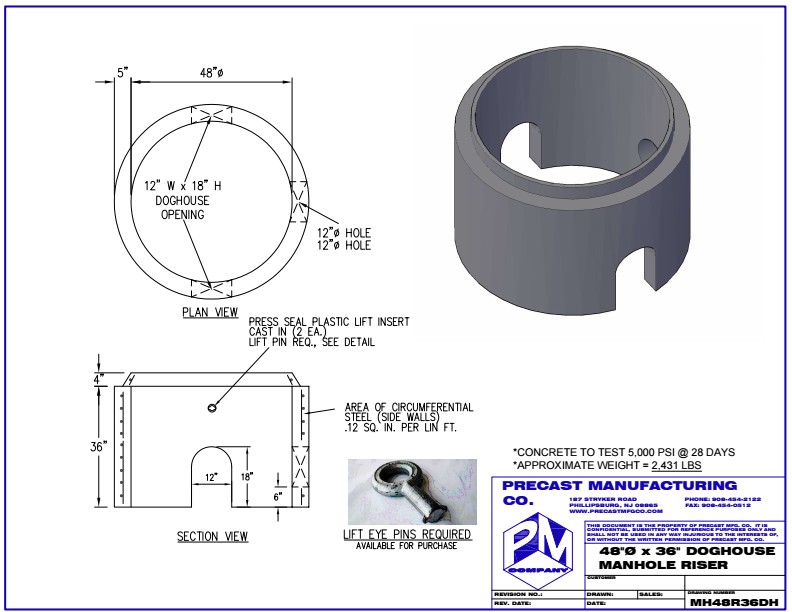

48″ Dia. “Doghouse” Manhole

48" Dia. "Doghouse" Manhole

Tap the blue button below to download your file:

48″ Dia. “Doghouse” Manhole

48″ Dia. “Doghouse” Manhole w/Slab

48" Dia. "Doghouse" Manhole w/Slab

Tap the blue button below to download your file:

48″ Dia. “Doghouse” Manhole w/Slab

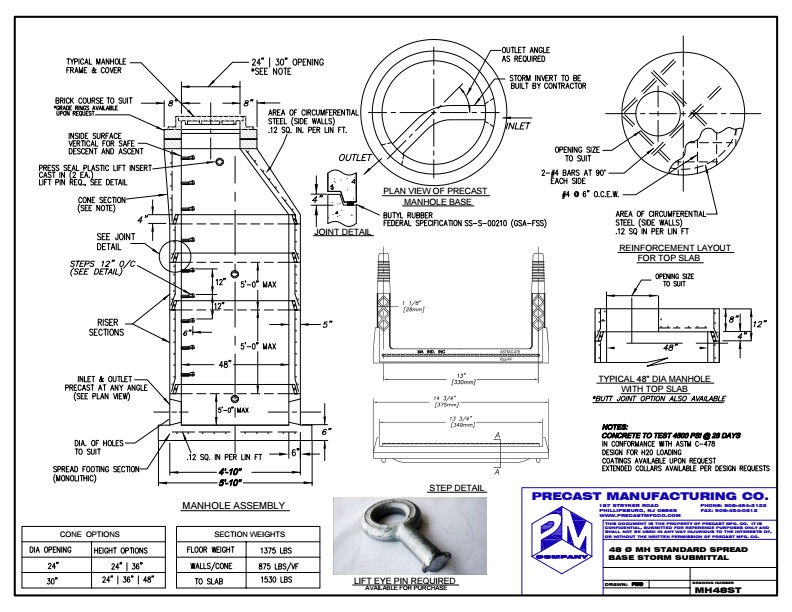

4′-0″ Dia. Concrete Manhole With Spread Footing – Typical Assembly

4'-0" Dia. Concrete Manhole With Spread Footing - Typical Assembly

Tap the blue button below to download your file:

4′-0″ Dia. Concrete Manhole With Spread Footing – Typical Assembly

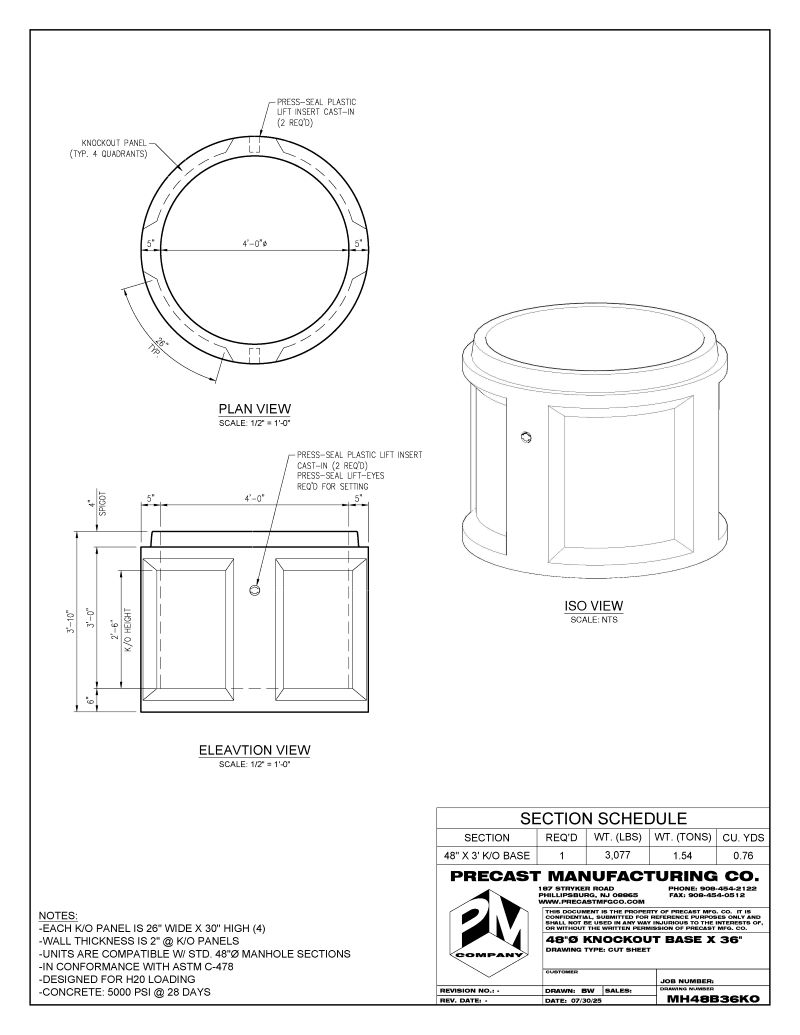

48″ Dia. Knockout Manhole

48" Dia. Knockout Manhole

Tap the blue button below to download your file:

48″ Dia. Knockout Manhole

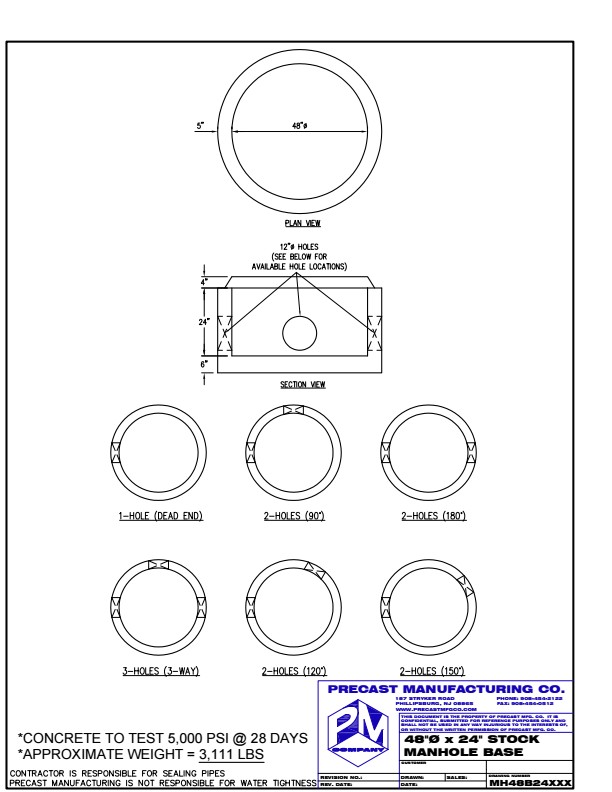

48″ Dia. Stock Manhole Base

48" Dia. Stock Manhole Base

Tap the blue button below to download your file:

48″ Dia. Stock Manhole Base

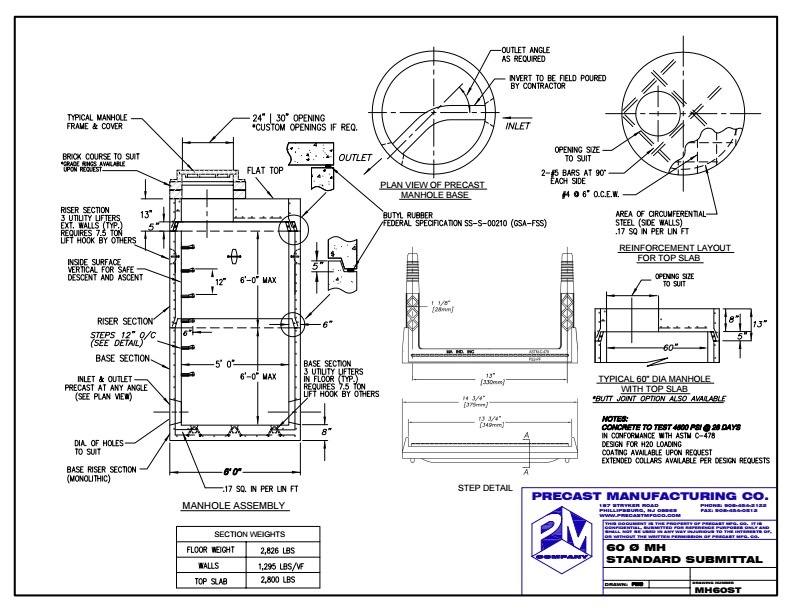

5′-0″ Dia. Concrete Manhole With 48″ Manhole Stack

5'-0" Dia. Concrete Manhole With 48" Manhole Stack

Tap the blue button below to download your file:

5′-0″ Dia. Concrete Manhole With 48″ Manhole Stack

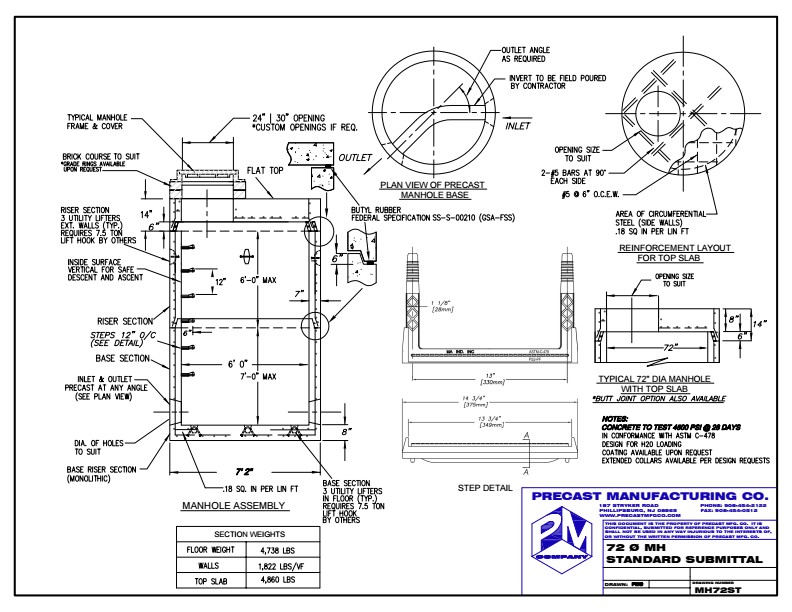

6′-0″ Dia. Concrete Manhole With 48″ Manhole Stack

6'-0" Dia. Concrete Manhole With 48" Manhole Stack

Tap the blue button below to download your file:

6′-0″ Dia. Concrete Manhole With 48″ Manhole Stack

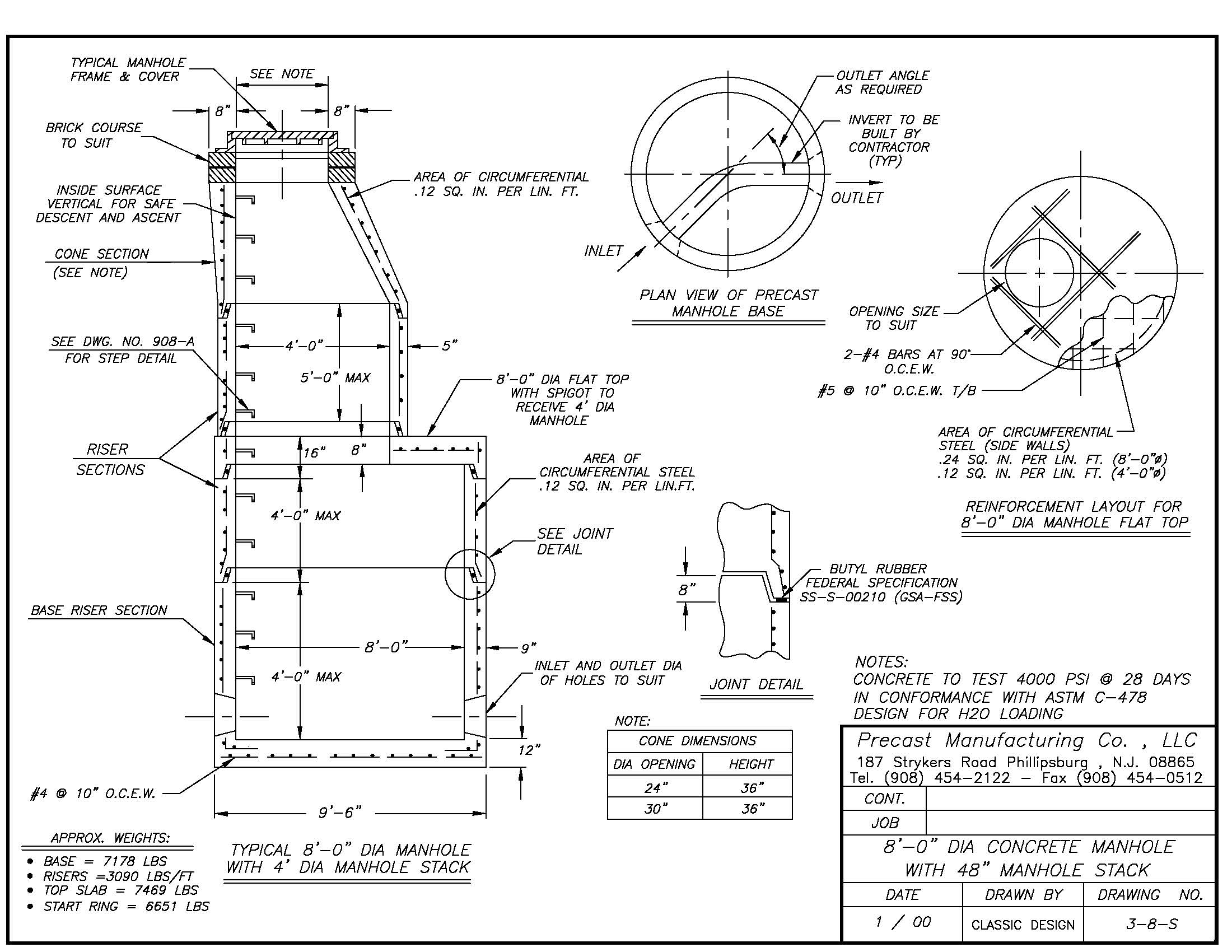

8′-0″ Dia. Concrete Manhole With 48″ Manhole Stack

8'-0" Dia. Concrete Manhole With 48" Manhole Stack

Tap the blue button below to download your file:

8′-0″ Dia. Concrete Manhole With 48″ Manhole Stack
